Hercules system Applications It has the following basic applications: Protection in parks, gardens and residential areas. Schools. Telephone repeater protection. Sport facilities. Industrial protection.

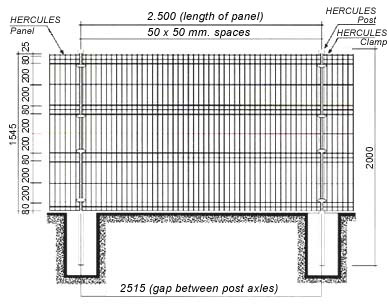

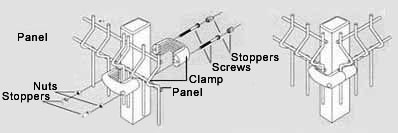

Description of the system elements Hercules® panel: Welded mesh with reinforcing folds. Mesh opening: 200 x 50 mm - 50 x 50 mm in folded areas. Wire diameter: 5 mm. Also possible, 6-mm diameter, upon request. Defensive points at one end of the panel. Since the panel is reversible, the points can be placed at the top or bottom of the fencing. Hercules® post: Rectangular 60 x 40-mm section with a thickness of 2.00 mm. Press-fit plastic cap. The Hercules post does not have any drill holes to prevent premature corrosion effects. Hercules® clamp: The metal elements, nuts, screws, are hermetically inserted into the clamp to prevent premature corrosion problems.

PANELS				POSTS		CLAMPS
Nominal height in m	Theoretical length in mm	Theoretical height in mm	No. of folds per panel	Length of the post with no arm in mm	Length of the post with arm in mm	No. of clamps per post
0,5 (2)	2500	485	2	725	-	2
1,0		1065	3	1450	-	3
1,5		1545	4	2000	2525 (1)	4
2,0		2025	5	2500	3025 (1)	5

1) available with green plastic coating. Other options upon request. The full length is stated. The arm is welded at 45 degrees and has a length of 525 mm. (2) Exception: in the 0.5 m panel, the separation between horizontal wires is 150 mm, except at the folds, where it is 50 x 50mm.

Technical characteristics 1.- Post-galvanised Hercules®.

Post-galvanised		AVERAGE LAYER OF ZINC
-		Thickness in microns	Mass in grams/m.²
PANEL	5,00 MM.	70	500
	6,00 MM.	85	610
POST		55	400

2.- Plastic-coated Hercules®.

MINIMUM ZINC LAYER			MINIMUM THICKNESS OF POLYESTER in microns	STANDARD COLOURS
Plastic-coated Hercules	Thickness in microns	Mass in grams /m.²
PANEL	10	75	125	Green RAL 6005 White RAL 9010
POST	20	140
