Hunting Series Meshes




 Moreda supplies two types of hunting series hinged joint fence:

  • Andalusia Hunting

  • Castile-La Mancha Hunting

Andalusia Hunting

The "HJ Moreda®" Andalusia Hunting - is used in game preserves that must conform to act 4/1998 regarding conservation of natural areas, flora and wildlife, as well as the Ruling of 17th June 1991 by the Andalusian Institute for Agrarian Reform, regarding regulation of hunting fencing in large game preserves.

The standard delivery method is in rolls with a linear length of 100 metres.



Wire diameter

Horizontal
(top and bottom)
 2,50 mm.
Horizontal
(middle)
 1,90 mm.
Vertical
 1,90 mm.

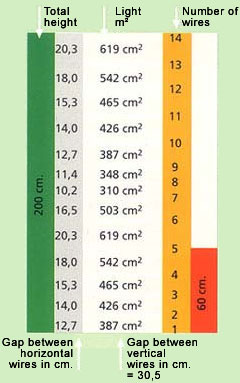

  • Minimum opening of the squares 300 cm².
  • Minimum separation of 10 cm between horizontal wires and 30 cm between vertical wires.
  • In the case of the row located at 60 cm from the bottom edge of the mesh, the squares have a minimum opening of 600 cm².

    • Definición de malla

    Type Height
    (cm.)    		 No. of horizontal wires Distance between vertical wires
    (cm.)    		 Approximate weight in kg of 100-m roll
    200-14-30 200 14 30 52

    Castile-La Mancha Hunting

    The hinged joint fence called Castile-La Mancha Hunting is used in hunting fencing in this Region, since it is the mesh that complies with the requirements of its Hunting Regulations.

    Wire diameter

    Horizontal
    (top and bottom)
    		 2,50 mm.
    Horizontal
    (middle)
    		 1,90 mm.
    Vertical
    		 1,90 mm.

    Mesh definition

    Type Height
    (cm.)    		 No. of horizontal wires Distance between vertical wires
    (cm.)    		 Approximate weight in kg of 100-m roll
    200-20-30 200 20 30 72
