Hercules gates




The Moreda product catalogue includes a full range of plastic-coated gates to complete its Hercules® System.

Applications

They have the following basic applications:

  • Protection in parks, gardens and residential areas.
  • Schools.
  • Telephone repeater protection.
  • Sport facilities.
  • Industrial protection.
Characteristics

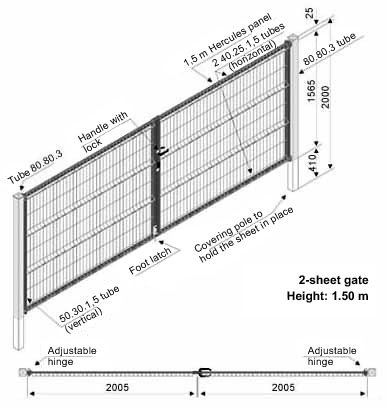

Hercules® gates can have one or two leaves.
They are supplied complete and ready to install. They are fitted with a locking system that uses a lock built into the section, with a key and a handle.
They have adjustable hinges. The double gates have a foot bolt and a catch to anchor into the floor. They are trimmed with Hercules® panels.



Characteristics of the coating:

Hercules® panels are used, manufactured with hot-galvanised wire by immersion in a bath of molten zinc.
All the sections are zinc-coated.
Polyester is subsequently applied with a minimum thickness of 80 microns.

Plastic-coated Hercules® gates.

Standard measurements and characteristics:

Nominal width in m
Nominal height in m
No. of leaves No. of folds Size of the crossbars in mm Size of the uprights in mm Size of the jambs in mm
1,0 1,0 1 3 25x2,0 60x60-2,0 50x30-1,5
1,0 1,5 1 4 " " "
1,0 2,0 1 5 " " "
4,0 1,5 2 4 " 80x80-3,0 "
4,0 2,0 2 5 " " "

Colours: green RAL 6005 or white RAL 9010. Other measurements and colours available upon request.
